3D Die Profile Gauge（DM Series）

The 3D Die Profile Gauge (DM Series) adopts 3D optical imaging technology. It reconstructs the 3D profile of the inner hole via optical scanning. With one click, it can measure parameters including inner hole diameter, ovality, sizing zone length and compression zone angle in a single run. It is an essential tool for modern cable and die manufacturers to boost production capacity and guarantee product quality.

Measurement Range

0.015~45mm

Measurement Data

Diameter, Ovality, Sizing Length, Compression Angle

Measurement Principle

Telecentric Optical 3D Scanning Measurement Technology

Application Industries

Metal Wire Drawing, Wire & Cable

Product Introduction

The 3D Die Profile Gauge (DM Series) adopts the principle combining multi-axis precision optical scanning and high-resolution image acquisition. The system illuminates the die inner hole with collimated light source, and performs all-round optical scanning and 3D reconstruction of the die inner hole via a high-precision multi-axis measuring structure. The multi-axis optical system synchronously captures geometric features of the inner hole profile. Combined with high-speed image processing algorithms, it accurately calculates 3D spatial parameters such as sizing zone and compression angle. The non-contact optical measurement principle fundamentally eliminates wear and human errors caused by contact probes. Meanwhile, the system algorithm can automatically compensate for errors induced by hole deflection angle.

- Supports non-contact 3D optical scanning and 3D reconstruction of inner holes
- Supports tip measurement of sizing asymmetry and eccentricity, calculated by high-precision optical system
- Built-in automatic hole deflection angle compensation. Based on 3D model spatial algorithm, it effectively reduces measurement errors caused by tilted die placement
- One-click rapid measurement with auto-focus and automatic lens switching. Single-axis measurement takes only 8 seconds, and four-axis asymmetry measurement takes approximately 24 seconds
- Visualized measurement status: observe inner hole surface conditions (such as damage and dust) in real time through the image window; out-of-tolerance alerts are prominently displayed in the data panel
- Automatic storage and export of massive measurement data: up to 200,000 records can be saved automatically; professional measurement reports are available for printing
- Supports light source calibration, system calibration and self-service software upgrade to guarantee long-term stable high-precision measurement of the equipment
- Equipped with USB3.0 data interface, compatible with mainstream operating systems

Key Features

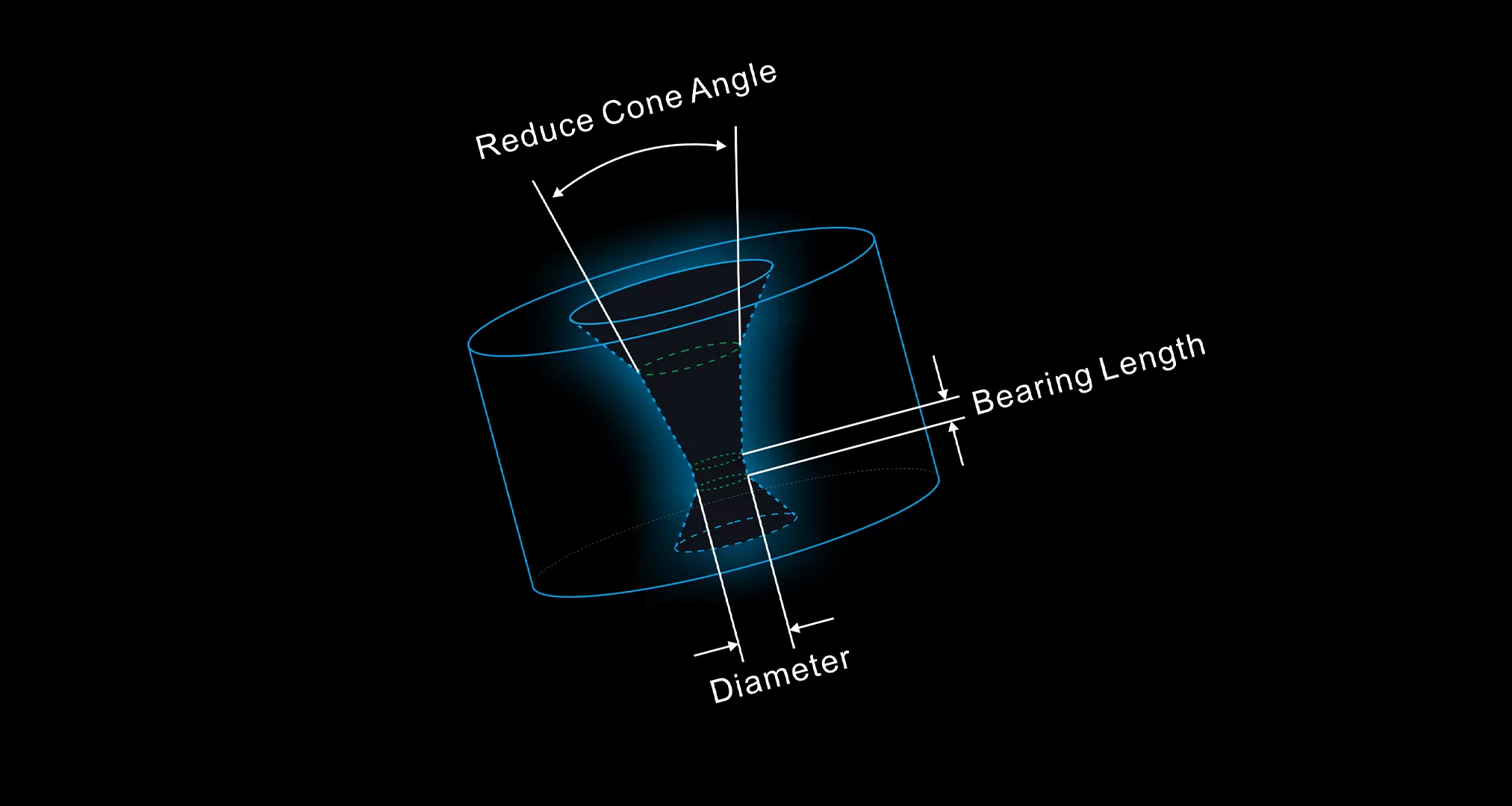

3D Measurement, Simple and Fast

The software system is easy to operate. Place the die and click once. Single-axis measurement takes approximately 8 seconds, while four-axis asymmetry measurement takes around 24 seconds for high efficiency. Operators can complete measurements without any professional background.

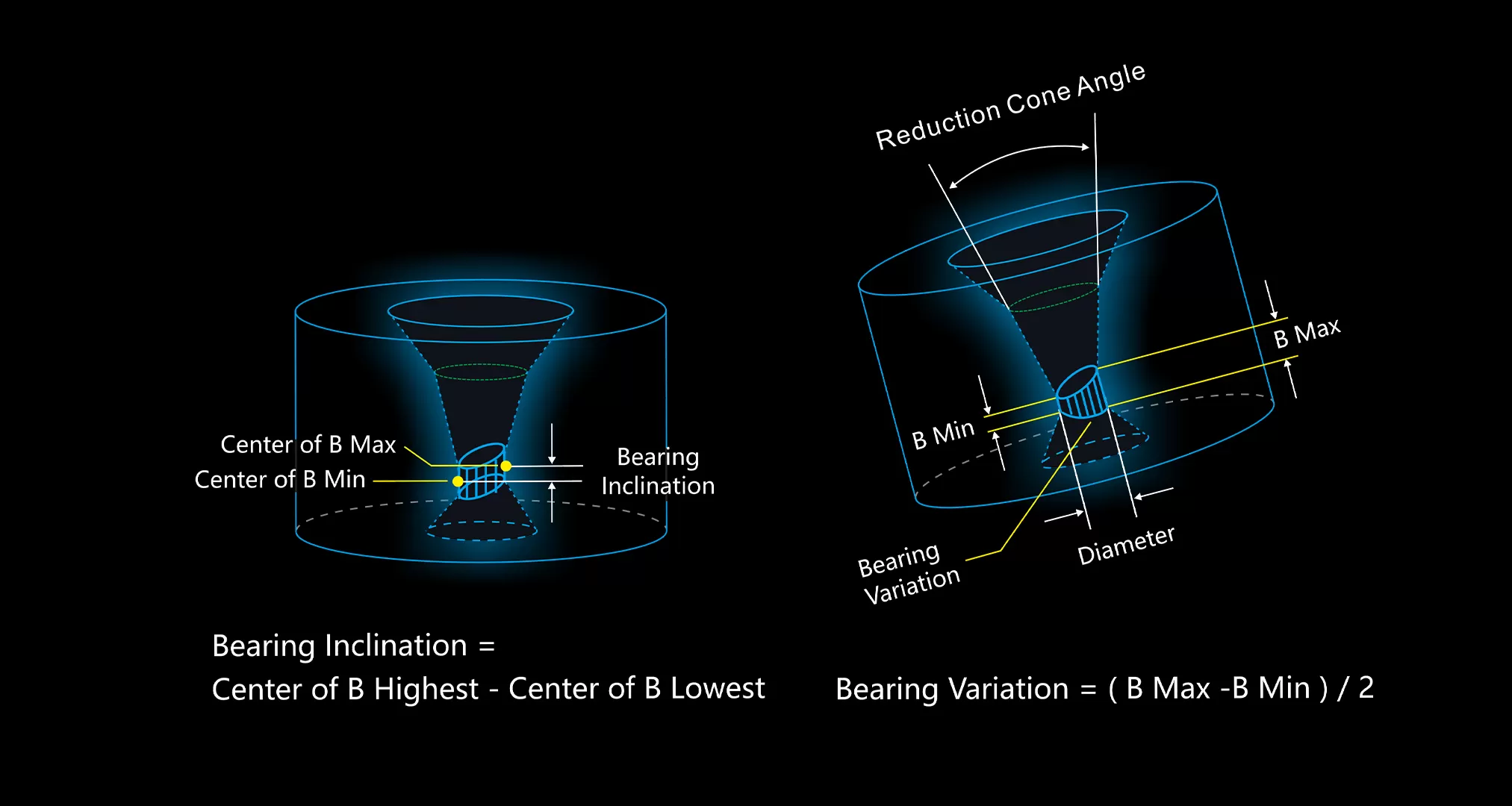

Four-axis Measurement

Equipped with a high-precision multi-axis measuring structure, it samples one profile cross-section every 45° to acquire profile data from 8 directions, enabling more comprehensive inspection of the die inner hole and preventing missed detection.

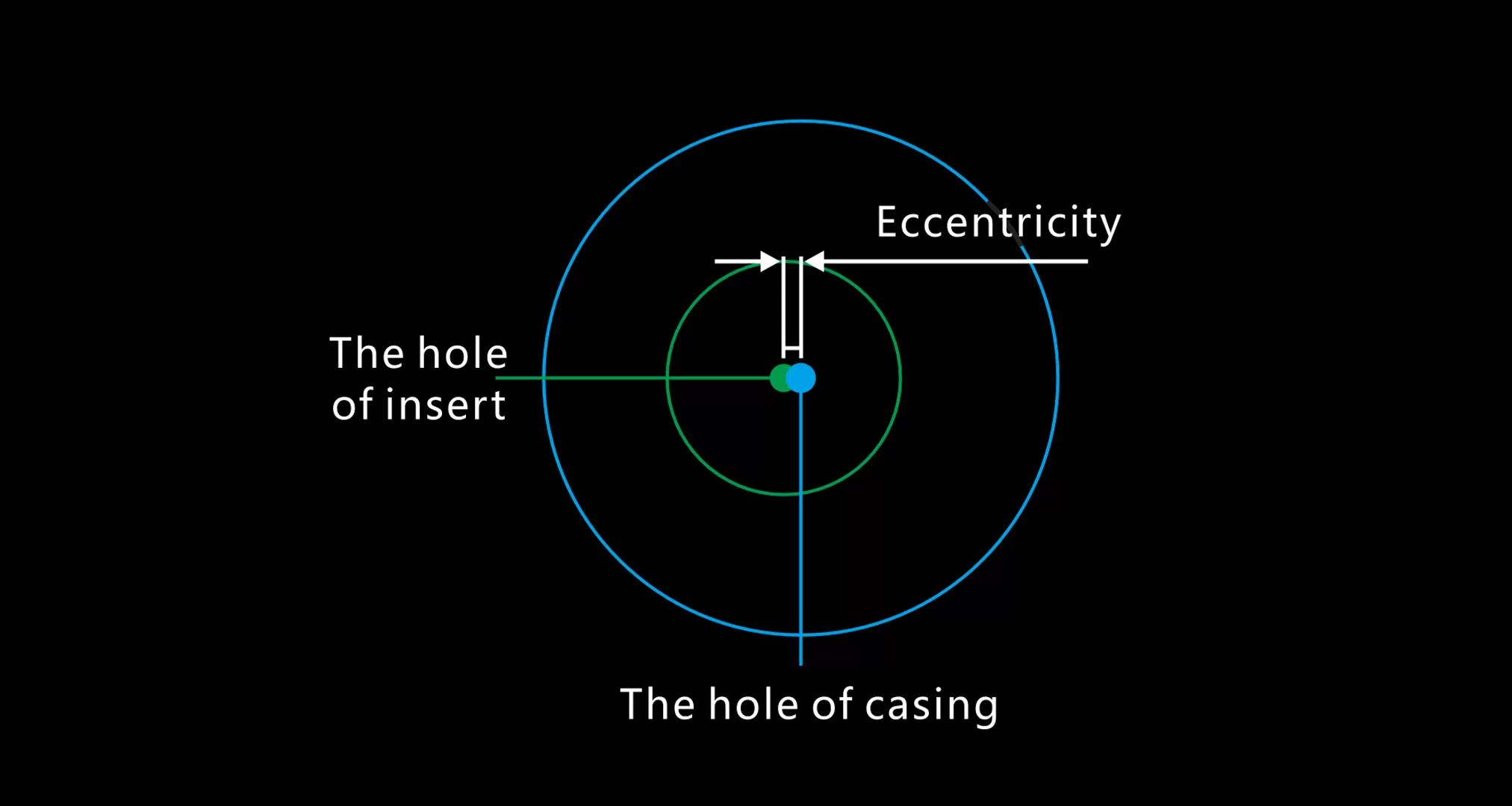

Eccentricity Measurement

It is equipped with an eccentricity measuring stage for wire drawing dies for the first time. It can measure various die parameters and eccentricity data simultaneously, with measurement accuracy up to ±1.5μm, enabling multi-dimensional quality control of wire drawing dies.

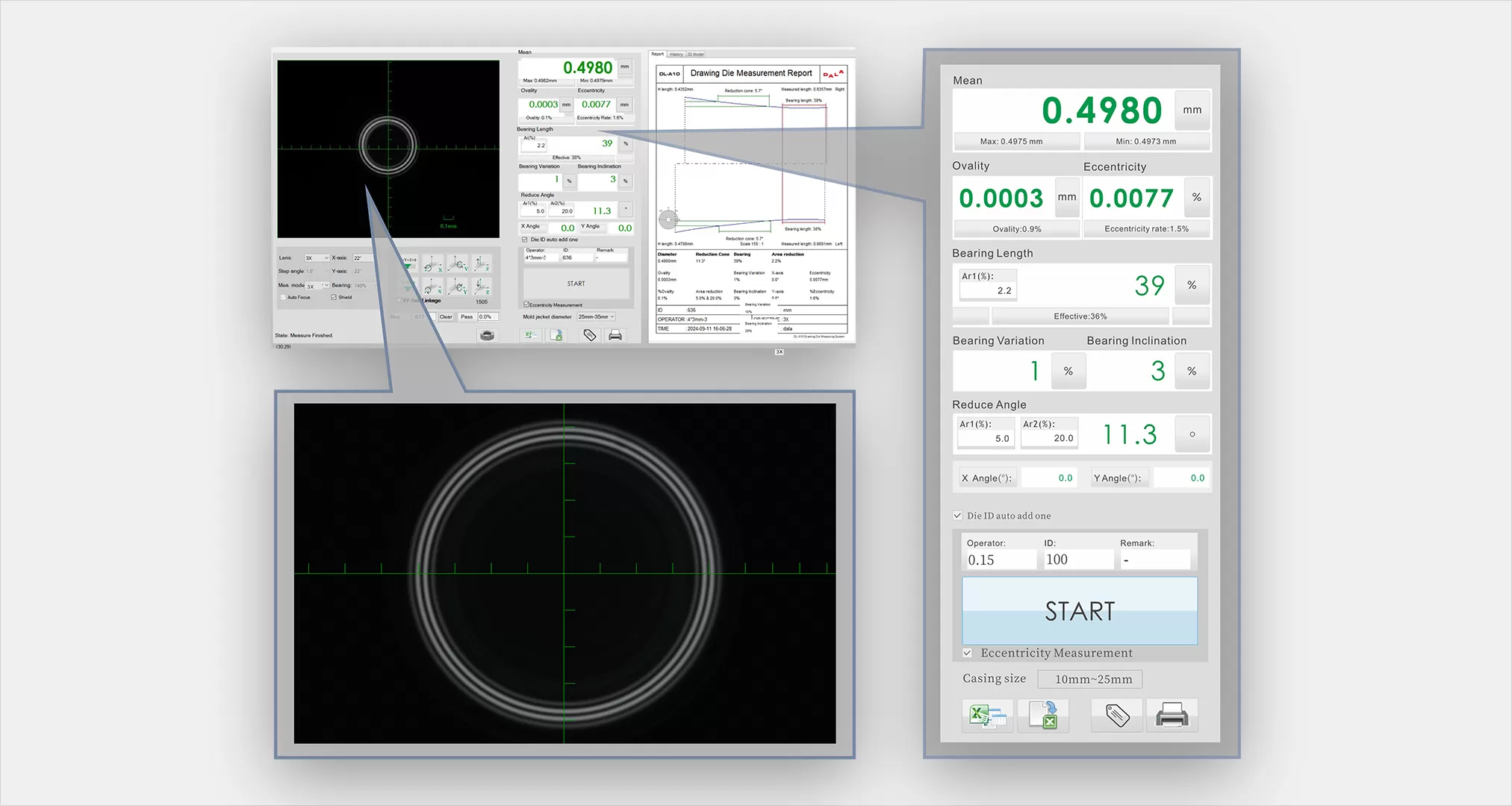

Visualized Measurement Status

The interface is clear, concise and presents comprehensive data. Users can observe the surface conditions of die inner holes (such as damage and dust) through the image window. The oversized result display area allows operators to view data from a distance.

Technical Parameter

DM600S Specifications

Lens magnification		2D measuring range		3D measuring range		Diameter/ovality accuracy¹⁾²⁾³⁾
20X		0.015-0.200 mm		0.020-0.035 mm		±0.0004 mm
10X		0.035-0.450 mm		0.035-0.110 mm		±0.0006 mm
3X		0.110-1.600 mm		0.110-0.800 mm		±0.0009 mm
1X		0.350-5.000 mm		0.400-4.500 mm		±0.0012 mm
0.5X		0.700-10.000 mm		0.800-9.000 mm		±0.0024 mm

Lens magnification		20X	10X (0.030~0.035 mm)	10X (0.035~0.110 mm)	3X	1X	0.5X
Bearing length repeatability		±5%	±5%	±2%	±1%
Compression angle repeatability		±0.5°	±0.5°	±0.3°	±0.2°
Bearing asymmetry	Bearing variation repeatability	N/A	±3-6%	±2-4%
	Bearing inclination repeatability	N/A	±3-6%	±2-4%
Eccentricity accuracy		±0.0015 mm
Bearing asymmetry range		0-50%
Bearing length measuring range⁽⁴⁾		0-70%
Compression angle range		0-32°
Max. die outer diameter		70 mm
Max. die height		32 mm
Max. die weight		0.5 kg
Measurement report print		Die profile, diameter, ovality, bearing length, compression angle, etc.
Measurement data storage		Automatic storage, up to 20,000 custom-stored records; exportable in MS Excel or TXT
Light source calibration		YES
System calibration		YES
Software upgrade		YES
Power supply		48 VDC ±5%, Max. 72 W
Data interface		USB3.0
Operating environment		Relative humidity 15~80%, temperature +15°C~+30°C, noise < 70 dB
Storage environment		Relative humidity 8~80%, temperature 0°C~+50°C
Dimensions		444D x 444W x 906H (mm)
Note: (1) Repeatability figures are measured under conditions free from obvious air convection and ambient vibration; (2) Accuracy data are valid when the hole tilt angle is zero. DM600S can automatically compensate for the error caused by the hole tilt angle; (3) Accuracy data are valid when the bearing length is less than 70%; (4) Bearing length (%) = (bearing zone depth (mm) / bearing zone diameter (mm)) × 100%.

DM500S Specifications

Lens magnification	2D measuring range		3D measuring range		Diameter/ovality accuracy¹⁾²⁾³⁾
20X	0.015-0.200 mm		0.020-0.035 mm		±0.0004 mm
10X	0.035-0.450 mm		0.035-0.110 mm		±0.0006 mm
3X	0.110-1.600 mm		0.110-0.800 mm		±0.0009 mm
1X	0.350-5.000 mm		0.400-4.500 mm		±0.0012 mm
0.5X	0.700-10.000 mm		0.800-9.000 mm		±0.0024 mm

Lens magnification	20X	10X (0.030~0.035 mm)	10X (0.035~0.110 mm)	3X	1X	0.5X
Bearing length accuracy	±5%	±5%	±2%	±1%
Compression angle accuracy	±0.5°	±0.5°	±0.3°	±0.2°
Bearing length measuring range⁽⁴⁾	0-70%
Compression angle range	0-32°
Max. die outer diameter	70 mm
Max. die height	32 mm
Max. die weight	0.5 kg
Measurement report print	Die profile, diameter, ovality, bearing length, compression angle, etc.
Measurement data storage	Automatically stored in ACCESS database, up to 20,000 custom-stored records; exportable in MS Excel or TXT
Light source calibration	YES
System calibration	YES
Software upgrade	YES
Power supply	48 VDC ±5%, Max. 72 W
Data interface	USB3.0
Operating system	Windows 10 / Windows 7
Operating environment	Relative humidity 15~80%, temperature +15°C~+30°C, noise < 70 dB
Storage environment	Relative humidity 8~80%, temperature 0°C~+50°C
Instrument weight	80 kg
Dimensions	420D x 410W x 920H (mm)
Note: (1) The repeatability is typically 3-5 times better than the accuracy; (2) Accuracy data are valid when the hole tilt angle is zero. DM500S can automatically compensate for the error caused by the hole tilt angle; (3) Accuracy data are valid when the bearing length is less than 70%; (4) Bearing length (%) = (bearing zone depth (mm) / bearing zone diameter (mm)) × 100%.

DM300S Specifications

Lens magnification	2D measuring range		3D measuring range		Diameter/ovality accuracy¹⁾²⁾³⁾
20X	0.015-0.200 mm		0.020-0.035 mm		±0.0004 mm
10X	0.035-0.450 mm		0.035-0.110 mm		±0.0006 mm
3X	0.110-1.600 mm		0.110-0.800 mm		±0.0009 mm
1X	0.350-5.000 mm		0.400-4.500 mm		±0.0012 mm
0.5X	0.700-10.000 mm		0.800-9.000 mm		±0.0024 mm

Lens magnification	20X	10X	3X	1X	0.5X
Bearing length accuracy	±8%		±5%
Compression angle accuracy	±2°		±1°
Bearing length measuring range⁽⁴⁾	0-70%
Compression angle range	0-32°
Max. die outer diameter	70 mm
Max. die height	32 mm
Max. die weight	0.5 kg
Measurement report print	Die profile, diameter, ovality, bearing length, compression angle, etc.
Measurement data storage	Automatic storage, up to 20,000 custom-stored records; exportable in MS Excel or TXT
Light source calibration	YES
System calibration	YES
Software upgrade	YES
Power supply	48 VDC ±5%, Max. 72 W
Data interface	USB3.0 (compatible with USB2.0)
Operating system	Windows 10 / Windows 7
Operating environment	Relative humidity 15~80%, temperature +15°C~+30°C, noise < 70 dB
Storage environment	Relative humidity 8~80%, temperature 0°C~+50°C
Instrument weight	60 kg
Dimensions	420D x 340W x 920H (mm)
Note: (1) The repeatability is typically 3-5 times better than the accuracy; (2) Accuracy data are valid when the hole tilt angle is zero. DM500S can automatically compensate for the error caused by the hole tilt angle; (3) Accuracy data are valid when the bearing length is less than 70%; (4) Bearing length (%) = (bearing zone depth (mm) / bearing zone diameter (mm)) × 100%.

DM300 Specifications

Lens magnification	2D measuring range		3D measuring range		Diameter/ovality accuracy¹⁾²⁾³⁾
20X	0.015-0.200 mm		0.020-0.035 mm		±0.0004 mm
10X	0.035-0.450 mm		0.035-0.130 mm		±0.0006 mm
3X	0.110-1.500 mm		0.110-1.000 mm		±0.0009 mm
1X	0.350-4.500 mm		0.400-4.000 mm		±0.0012 mm
0.5X	0.700-9.000 mm		0.800-8.500 mm		±0.0024 mm
0.25X	1.000-20.00 mm		2.000-20.00 mm		±0.0050 mm
0.1X	4.000-45.00 mm		4.000-45.00 mm		±0.0100 mm

Lens magnification	20X	10X	3X	1X	0.5X	0.25X	0.1X
Bearing length accuracy	±8%		±5%			±4%
Compression angle accuracy	±2°		±1°			±0.5°
Bearing length measuring range⁽⁴⁾	0-70%					0-100%
Compression angle range	0-32°					0-32°
Max. die outer diameter	70 mm					160 mm
Max. die height	32 mm					75 mm
Max. die weight	0.5 kg					10 kg
Measurement report print	Die profile, diameter, ovality, bearing length, compression angle, etc.
Measurement data storage	Automatic storage, up to 20,000 custom-stored records; exportable in MS Excel or TXT
Light source calibration	YES
System calibration	YES
Software upgrade	YES
Power supply	48 VDC ±5%, Max. 72 W
Data interface	USB3.0 (compatible with USB2.0)
Operating system	Windows 10 / Windows 7
Operating environment	Relative humidity 15~80%, temperature +15°C~+30°C, noise < 70 dB
Storage environment	Relative humidity 8~80%, temperature 0°C~+50°C
Instrument weight	60 kg
Dimensions	420D x 340W x 920H (mm)
Note: (1) The repeatability is typically 3-5 times better than the accuracy; (2) Accuracy data are valid when the hole tilt angle is zero. DM500S can automatically compensate for the error caused by the hole tilt angle; (3) Accuracy data are valid when the bearing length is less than 70%; (4) Bearing length (%) = (bearing zone depth (mm) / bearing zone diameter (mm)) × 100%. (5) 0.25X and 0.1X apply to DM300 only.

Downloads

Technical documents such as product manuals, datasheets and outline drawings

PDF

3D Die Profile Gauge（DM Series）Brochure DownloadsPDF

⬇ Download

Frequently Asked Questions

Answers to frequently asked questions about 3D Die Profile Gauge（DM Series）

Q How to Select the Lens Magnification for Different Die Bore Sizes? ⌄

Lens Magnification	2D Measurement Range (mm)	3D Measurement Range (mm)
20X	0.015-0.200	0.020-0.035
10X	0.035 - 0.450	0.035 - 0.110
3X	0.110 - 1.50	0.110 - 1.000
1X	0.350 - 5.00	0.400 - 4.000
0.5X	0.700 - 9.00	0.800 -8.500
0.25X	1.00-20.00	2.00-20.00
0.1X	4.00-45.00	4.00-45.00

Q What should I do if the die bore cannot be located? ⌄

Switch to a lower-magnification lens. For example, if you are using a 10× lens, switch to 3×.
Move the die stage and look for a bright spot in the software image. Once found, move the bright spot to the center of the image, then adjust the Z-axis until the double-ring image becomes clear.
Switch back to the original magnification. Move the die stage again to center the bright spot, then adjust the Z-axis until the double-ring image is clear. If the image is already clear after switching back, no further Z-axis adjustment is needed.

Q What do Ar(%), Ar1(%), and Ar2(%) mean in the measurement software? ⌄

Ar(%) is an input parameter used to calculate the bearing length.
Ar1(%) and Ar2(%) are input parameters used to calculate the reduction angle. Their positions in the measurement interface are shown below:

In the example above, Ar(%) = 2.2. This means the bearing length is calculated based on the position where the die bore cross-sectional area reaches (1 + 2.2%) × A, where A is the minimum cross-sectional area of the die bore.

Starting from the minimum area A (purple dashed line below), the area increases by 2.2%, creating two positions as indicated by the blue arrows. The calculated bearing length in this example is 33%.

Ar1(%) = 5.0 and Ar2(%) = 20.0. The reduction angle is calculated using the positions where the die bore cross-sectional area reaches (1 + 5.0%) × A and (1 + 20.0%) × A.

Starting from the minimum area A (purple dashed line below), the area increases by 5% and 20%, creating two positions shown by the green arrows. The calculated reduction angle in this example is 15°.

Note: The die bore cross-sectional area is calculated from the radius along the die center axis, so two bearing length values and two reduction angle values can be obtained.

Q What does the effective bearing length mean? ⌄

The effective bearing length is calculated using the following formula:

Effective Bearing Length = (Overlap of the Left and Right Bearing Zones + (Left Bearing Length + Right Bearing Length) / 2) / 2

This value is designed to represent the actual effective bearing length of the wire drawing die as accurately as possible.
